Technical Specification | ||
CUDA Core / Stream Processors | 896 (CUDA) | |
Engine Clock | Boost-1710MHz (Reference Card: 1590 MHz) | |
Memory Clock | 12000 MHz | |
Capacity (GB/TB) | 4GB | |
Memory Bus | 128-bit | |
Memory Type | GDDR6 | |
Interface | PCI Express 3.0 | |
DirectX Support | 12 | |
OpenGL Support | 4.6 | |
General | ||

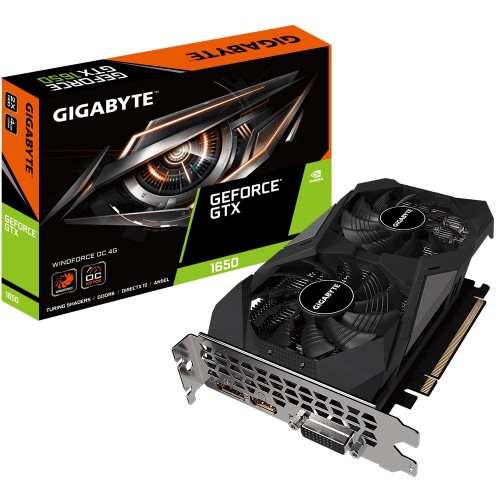

Model | Gigabyte GeForce GTX 1650 D6 WINDFORCE OC 4G | |
Chipset | NVIDIA GeForce | |
Chipset Model | GeForce GTX 1650 | |
Power | ||
Recommended PSU | 300W | |
Power Connectors | 6-pin x 1 | |
Physical Description | ||
Card Dimension | 191 x 112 x 36mm | |
Cooling Fan | Dual | |
PCB Form | ATX | |
Graphics Specifications | ||
Graphics Resolution Max | 7680x4320 | |
Multi Display Capability | Triple Display | |
Warranty Information | ||
Manufacturing Warranty | 02 Years | |

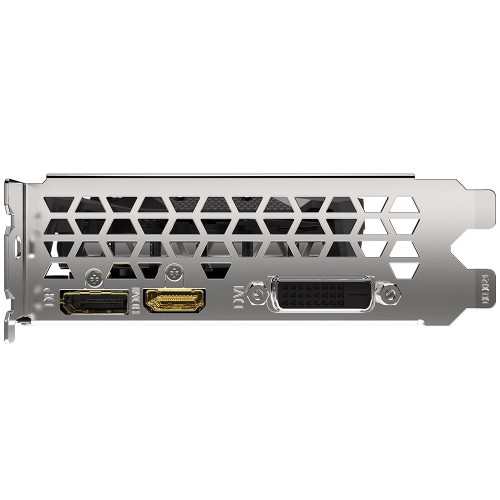

Ports | ||
DVI Port | 1 | |
HDMI Port | 1 | |
Display Port | 1 |
Features
Powered by GeForce® GTX 1650
NVIDIA Turing™ architecture and GeForce Experience™
Integrated with 4GB GDDR6 128-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
80 mm unique blade fans
Core Clock
1710 MHz (Reference card is 1590 MHz)

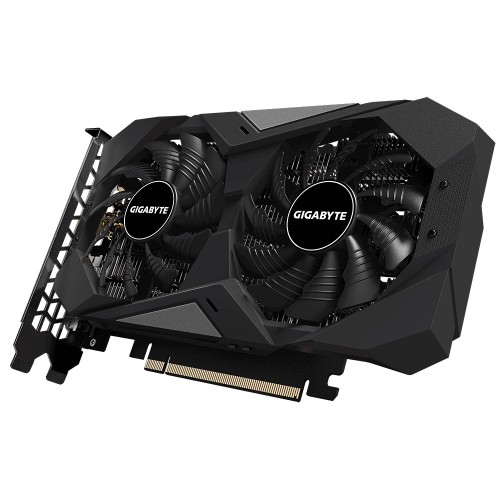

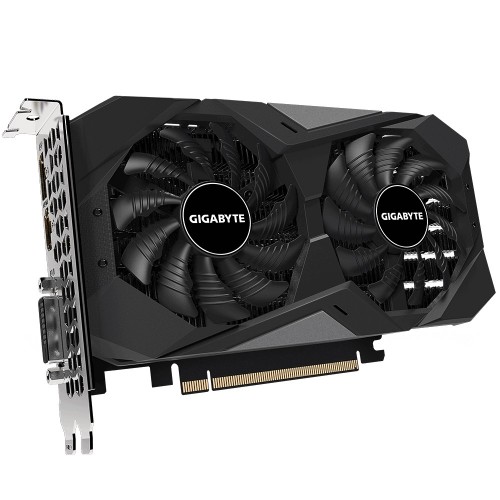

WINDFORCE 2X cooling system features 2x 80mm unique blade fans, alternate spinning fan, and 3D active fan, together delivering an effective heat dissipation.
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Brand - Gigabyte, Chipset Vendor - Nvidia GeForce, Chipset Model - GeForce GTX 1650, Model - Gigabyte GeForce GTX 1650 D6 WINDFORCE OC 4G, CUDA Core / Stream Processors - 896 (CUDA), Engine Clock - Boost-1710MHz (Reference Card: 1590 MHz), Memory Clock - 12000 MHz, Memory Size - 4GB, Memory Bus - 128-bit, Memory Type - GDDR6, Interface - PCI Express 3.0, Digital Max Resolution - 7680x4320, DirectX - 12, OpenGL - 4.6, DVI Port - 1, HDMI Port - 1, Displayport - 1, Recommended PSU - 300W, Power Connectors - 6-pin x 1, Multi Display Capability - Triple Display, Card Dimension - 191 x 112 x 36mm, Cooling Fan - Dual, PCB Form - ATX, Others - Memory Bandwidth (GB/sec): 192 GB/s, HDMI: 2.0b, DisplayPort: 1.4, Specialty - NVIDIA Turing architecture and GeForce Experience, WINDFORCE 2X Cooling System with alternate spinning fans, 80 mm unique blade fans, ALTERNATE SPINNING, 3D ACTIVE FAN, ULTRA COOLING, LOW POWER LOSS, FRIENDLY PCB DESIGN, Part No - GV-N1656WF2OC-4GD, Warranty - 2 Year
