Physical Specification | ||

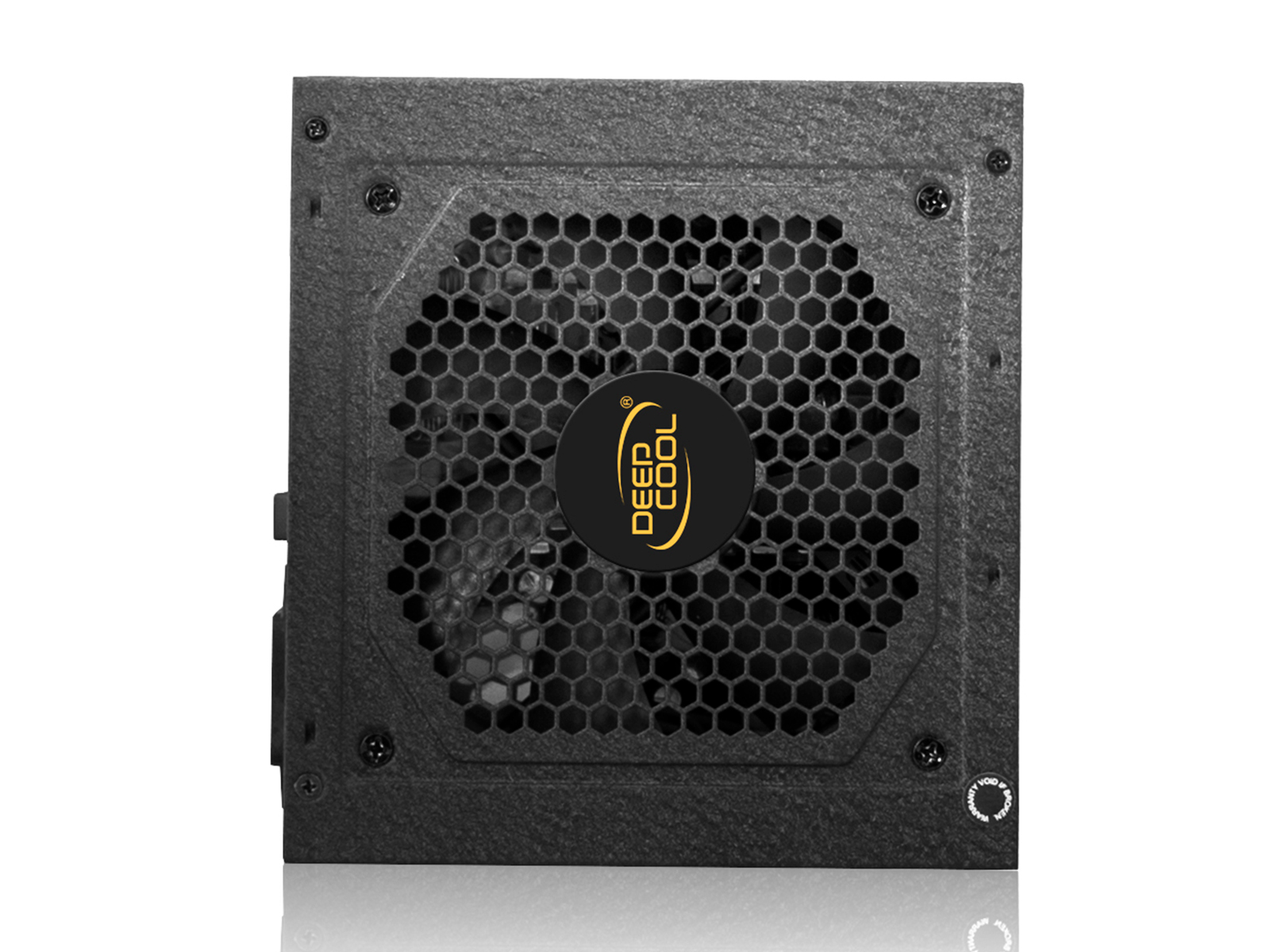

Fan Size | 120mm Black Fan | |
Protection | OVP / UVP / SCP / OPP | |
Technical Specification | ||
Output Capacity | 600W | |
Input Frequency Range | 47~63Hz | |
PFC | Active PFC | |
Power Good Signal | 100-500ms | |
Hold Up Time | >16ms | |
Efficiency | 85% Under Typical Load | |
Operation Temperature | 0~40°C | |
Regulatory | CE / FCC / CCC / CB / EAC | |
General | ||

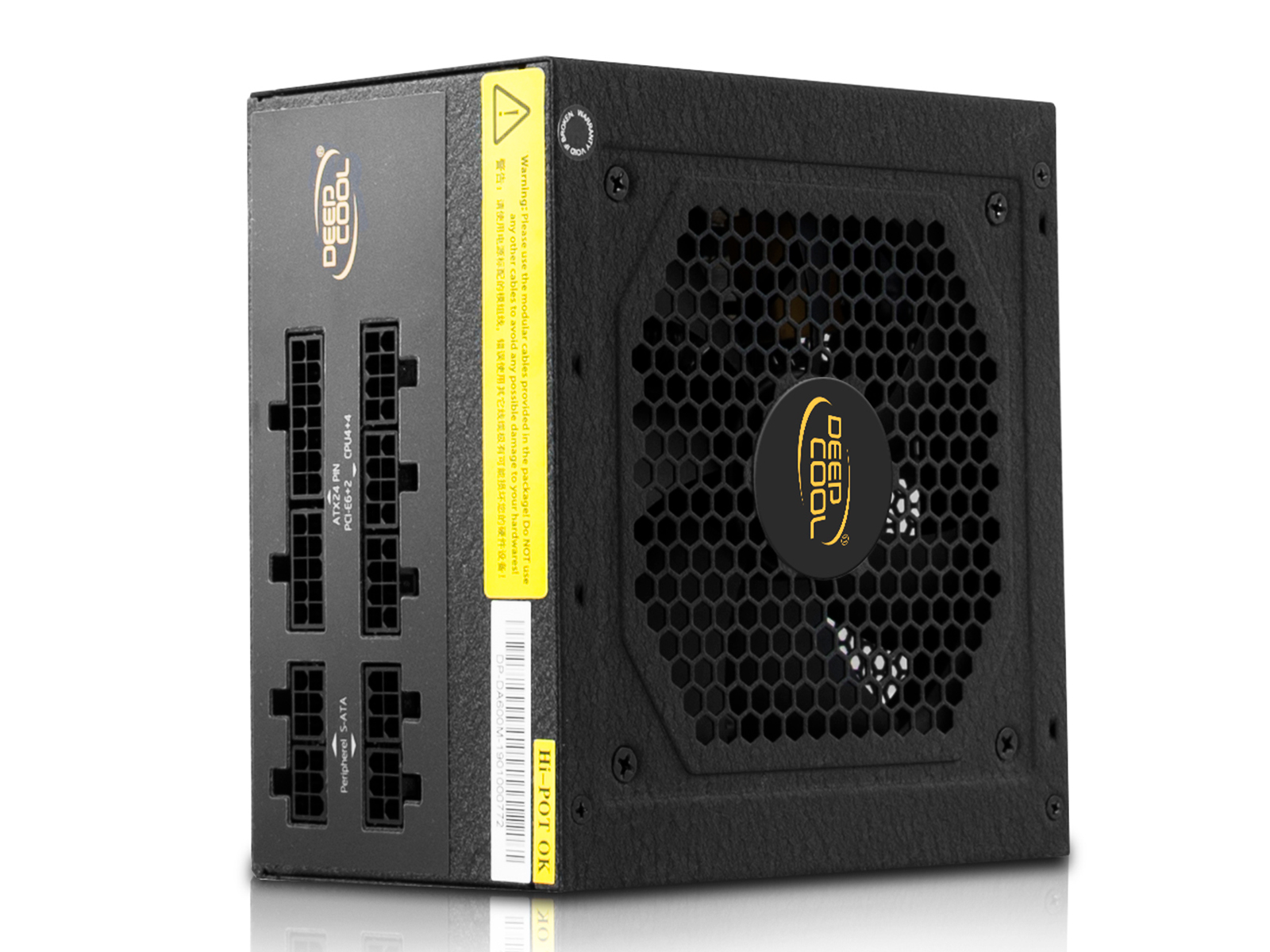

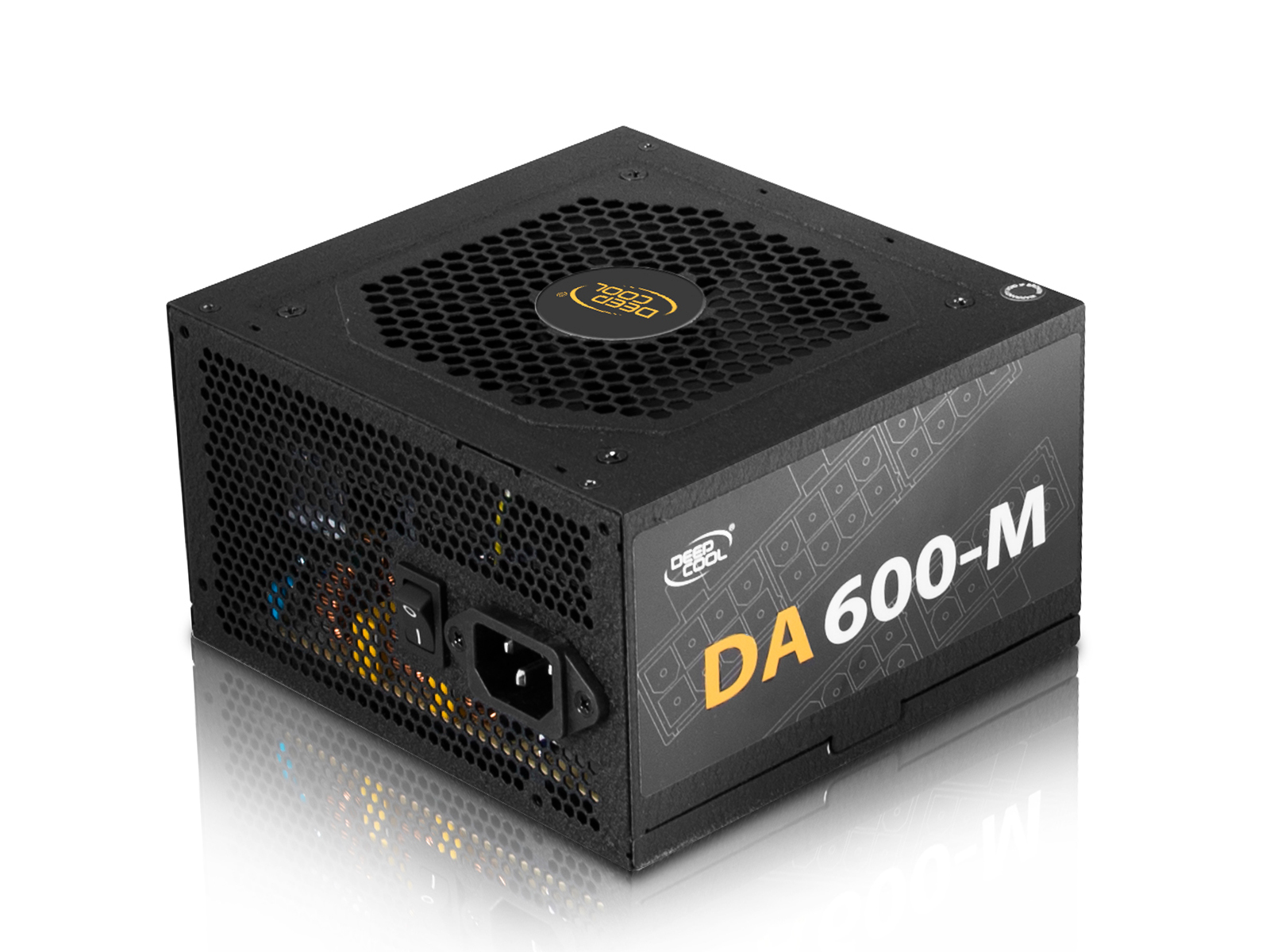

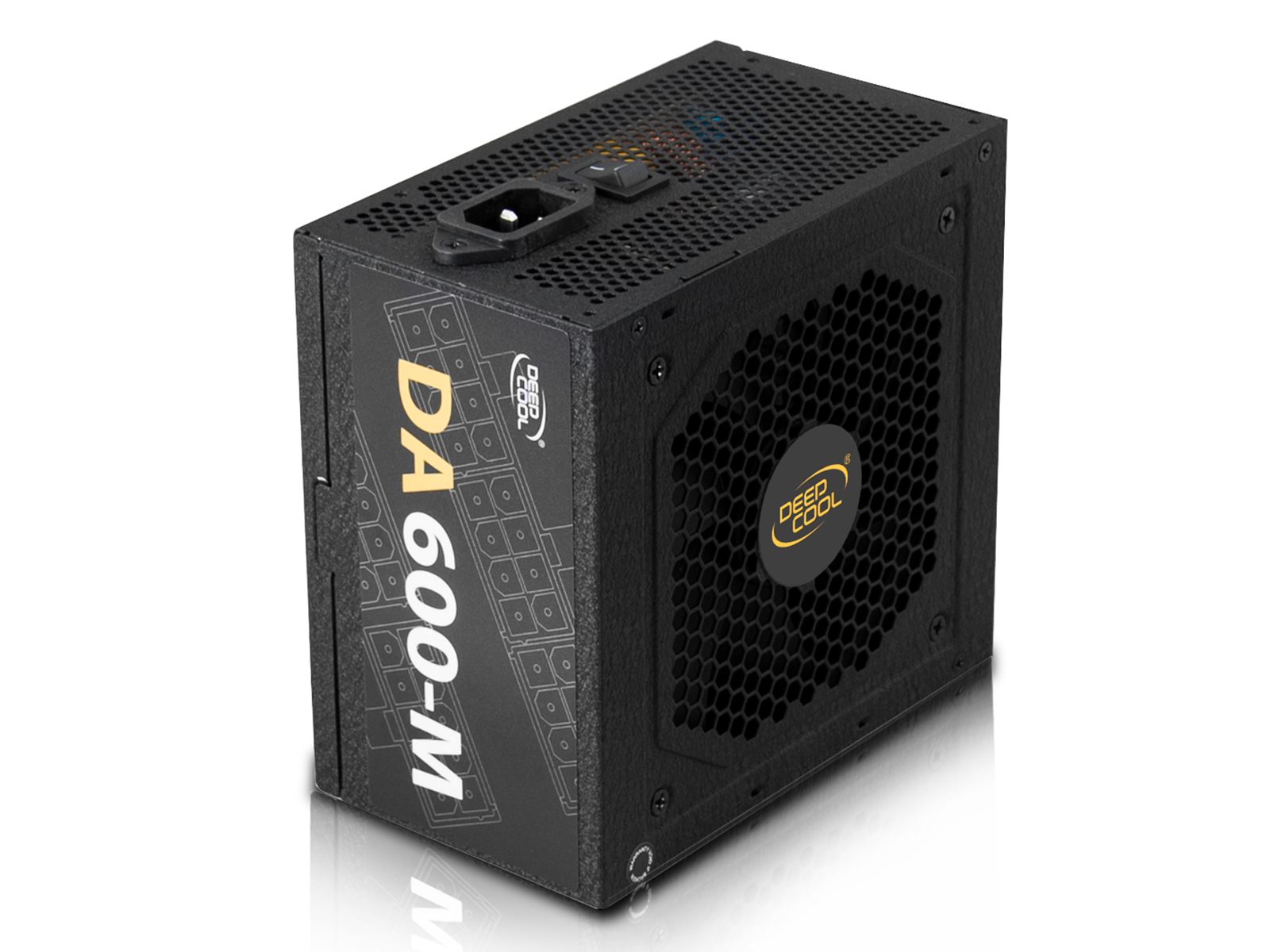

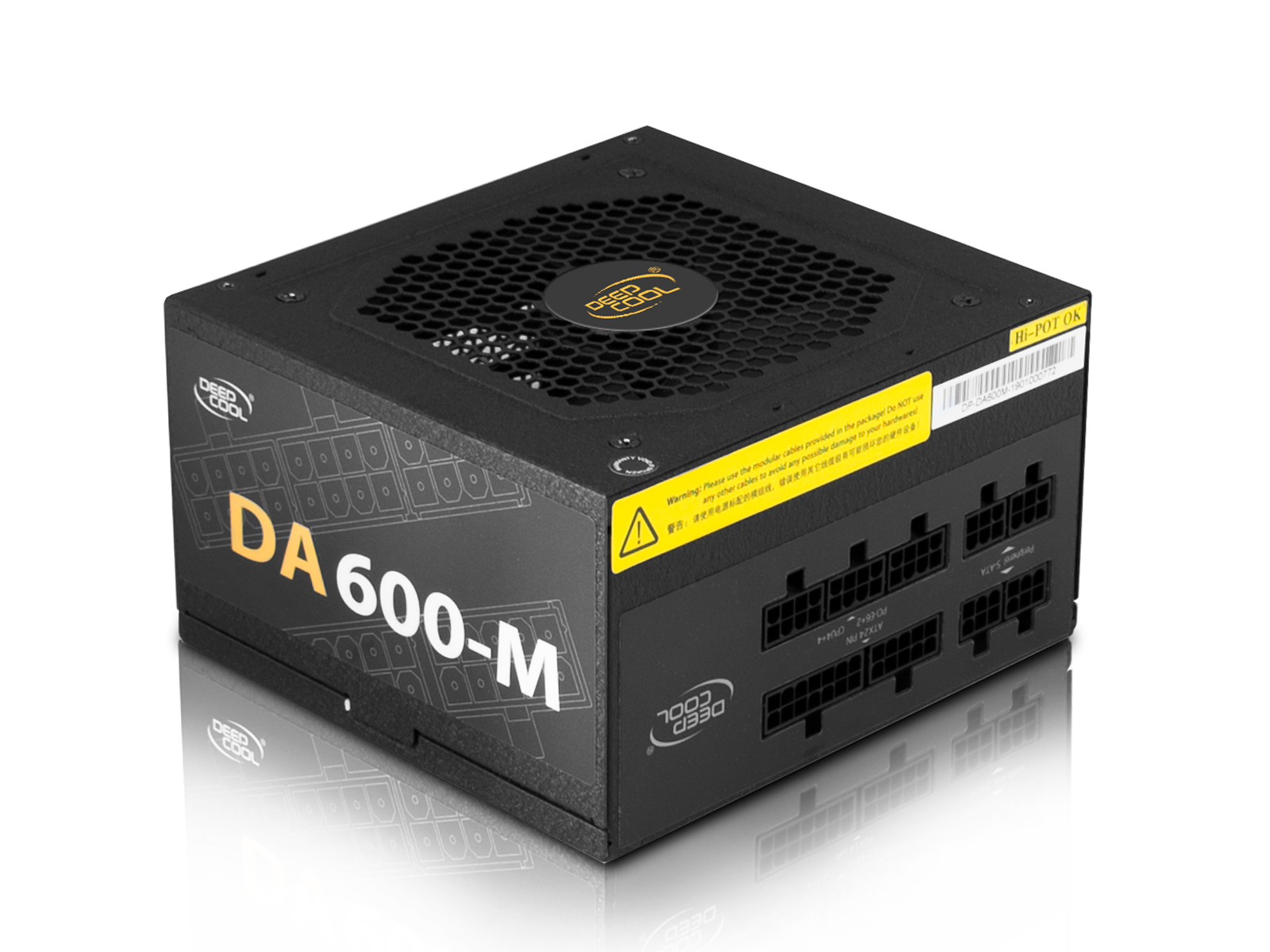

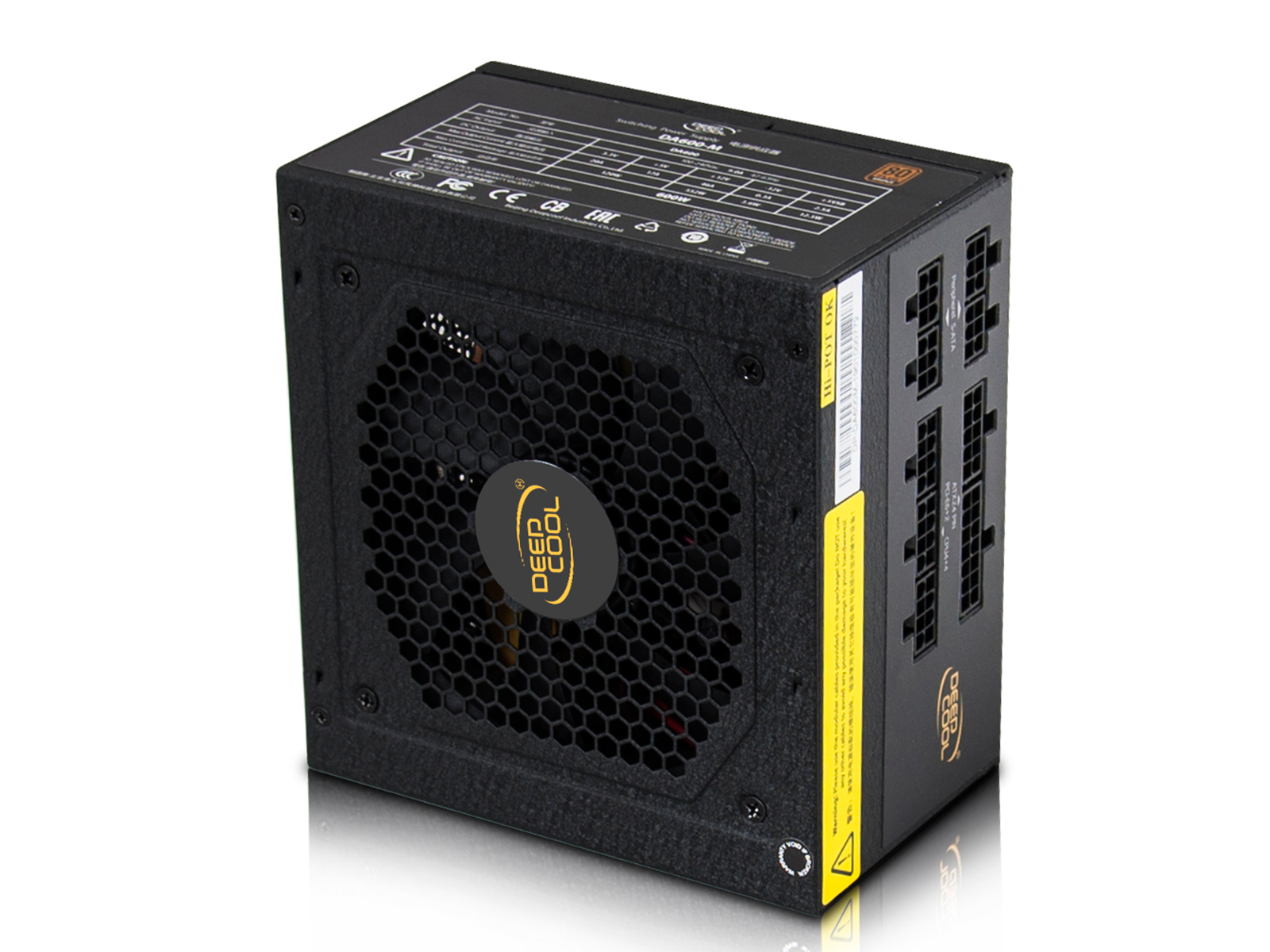

Model | DA600-M (Model No. DA600) | |
Type | ATX 12V V2.4 | |
Certifications | 80PLUS Bronze | |
MTBF | 100,000 Hours | |
EAN | 6933412798583 | |
P/N | DP-BZ-DA600-MFM | |
Power | ||
Input Voltage | 100~240V | |
Input Current | 9.0A | |
Physical Description | ||
Dimension | 150×140×86mm (W x L x H) | |
Warranty Information | ||
Manufacturing Warranty | 05 Years |
