Physical Specification | ||
Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features) | |

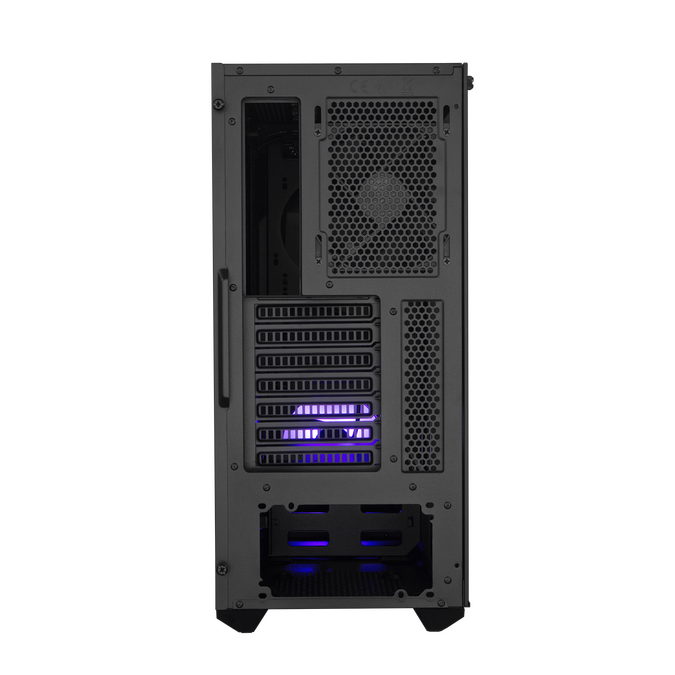

Expansion Slots | 7 | |
5.25" Drive Bays | 0 | |
2.5" / 3.5" Drive Bays (combo) | 2 | |
2.5" Drive Bays | 4 (2+2 combo) | |

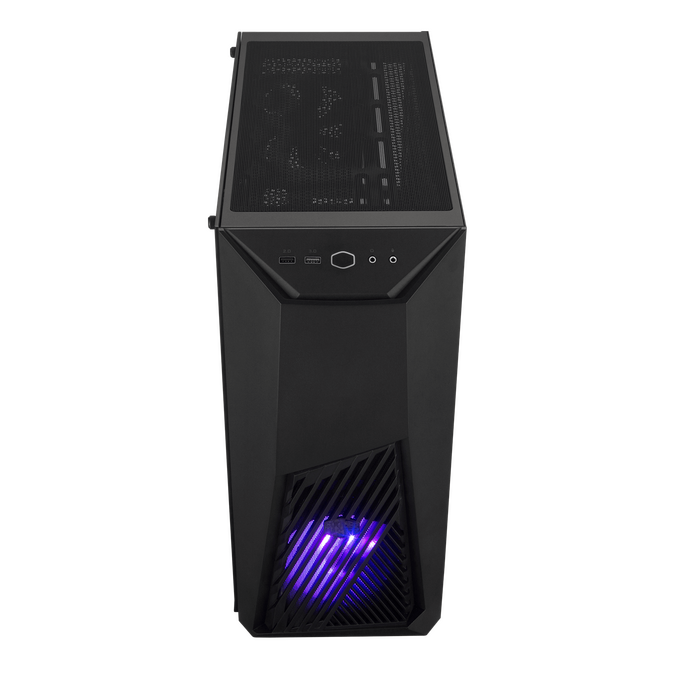

I/O Panel | 1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack | |
Pre-installed Fans - Top | N/A | |
General | ||
Model | MCB-K501L-KANN-S00 (MasterBox K501L), MCB-K501L-KGNN-SR1 (MasterBox K501L RGB) | |
Type | Gaming | |
Series | MasterBox Series | |
Form Factor | Mid Tower | |
Physical Description | ||
Dimensions | 496mm x 217mm x 469mm (incl. Protrusions), 428.7mm x 205mm x 458.5mm (excl. Protrusions) | |
Weight | 4.9 kg, 6.3 kg | |
Volume (exlc. Protrusions) | 40.3L | |
Additional Info | ||
Available Color(s) | Black | |
Materials | Steel, Mesh, Plastic, Acrylic (MCB-K501L-KANN-S00), Tempered Glass (MCB-K501L-KGNN-SR1) | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |

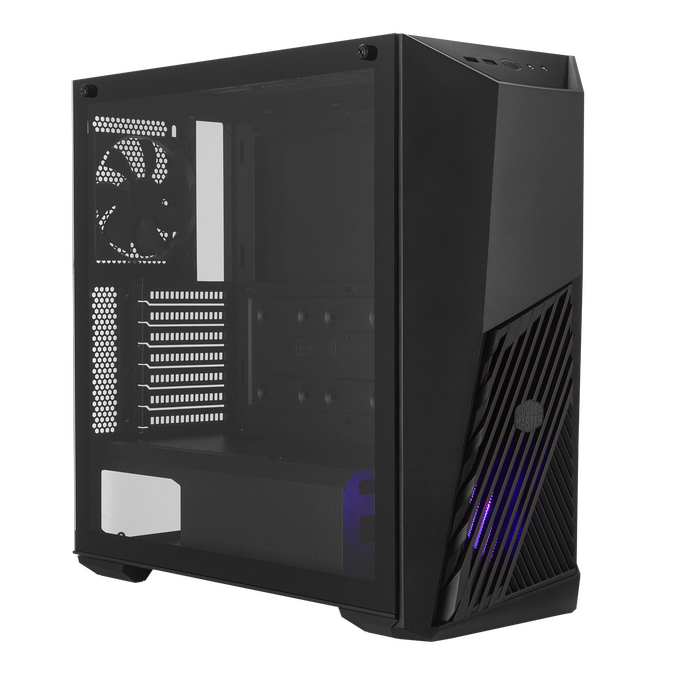

Gaming is in the core of the MasterBox K501L. Donning an illuminated fan against the angled front panel ventilation speaks to its competitive character. Support for gaming hardware like long graphics cards, plenty of storage, and liquid cooling take priority in the K501L while still leaving room for future upgrades.

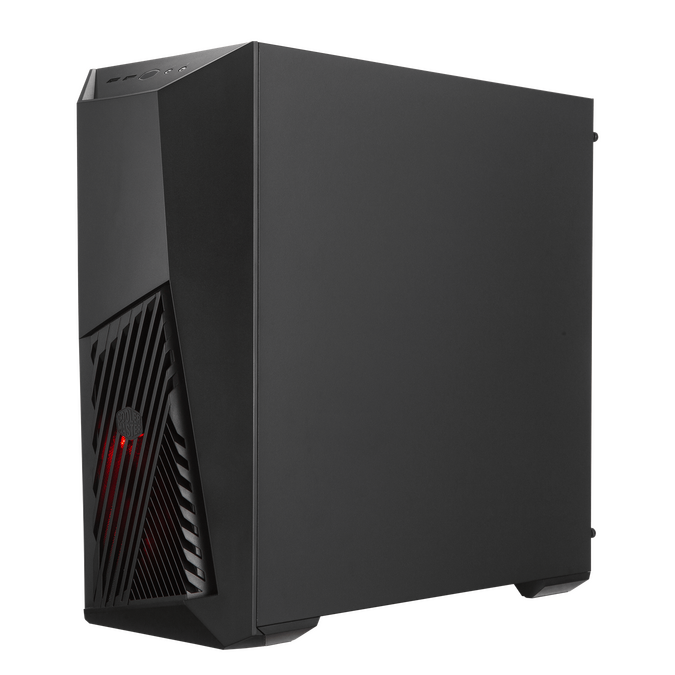

The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.

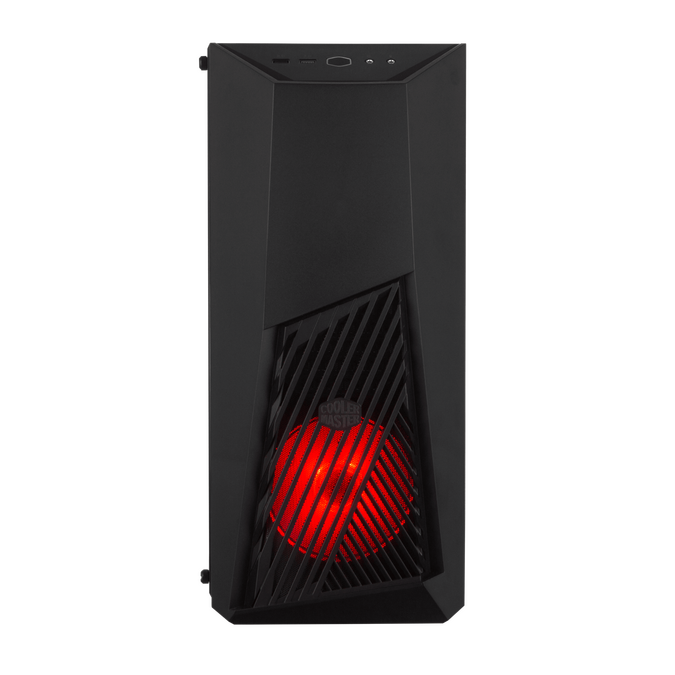

Paired with lighting on the power button, an illuminated fan glows through the angled ventilation; a testament to its gamer core.

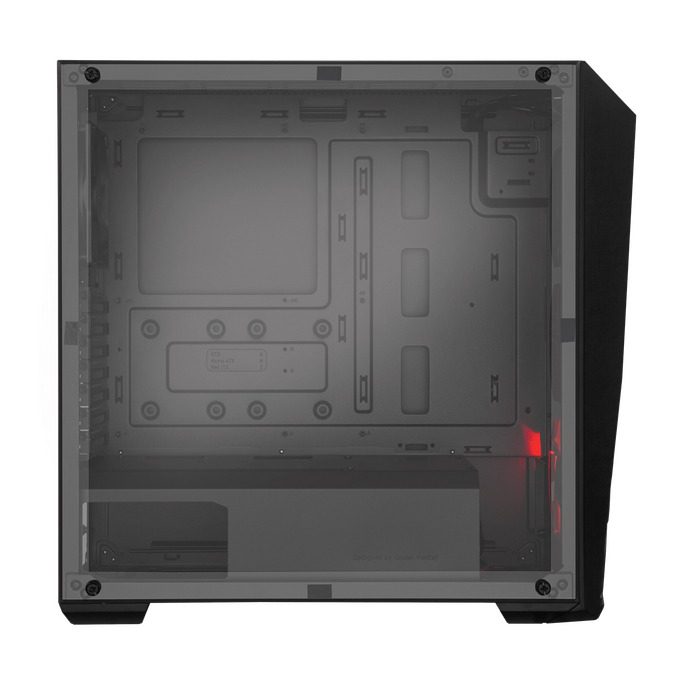

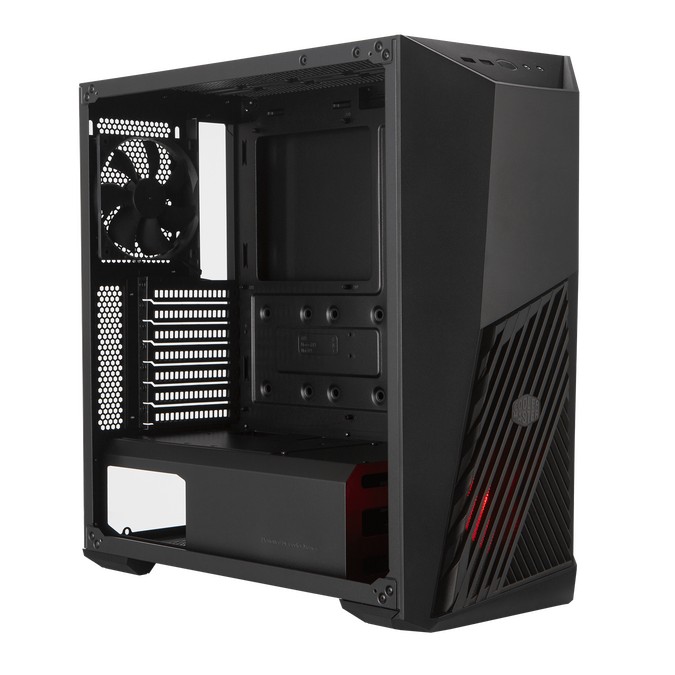

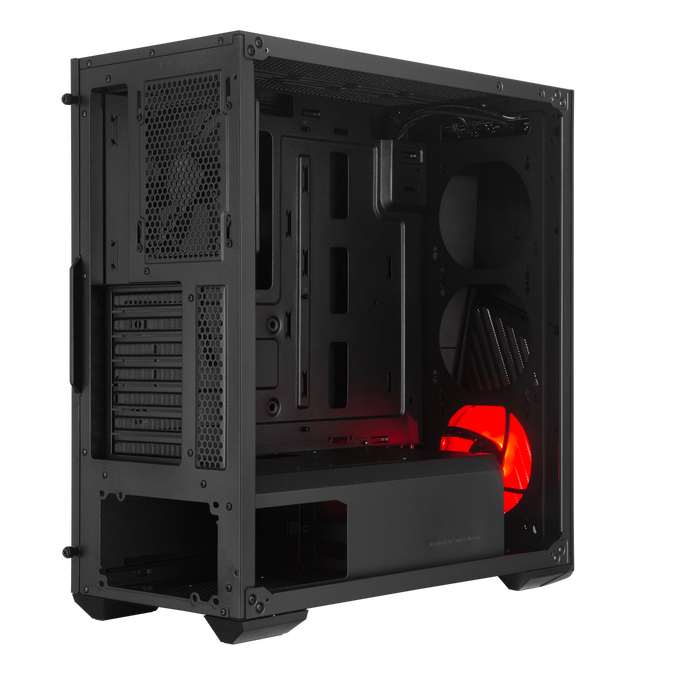

Showcase your build through the transparent side panel.

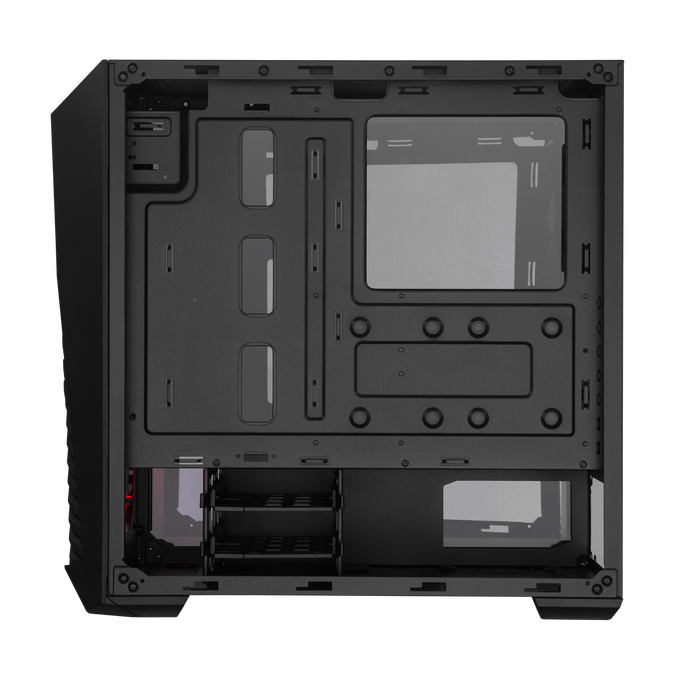

There is 19~27mm width of space behind the motherboard tray to efficiently manage and organize cables.
Model - Cooler Master MasterBox K501L RGB, Case Type - Mid Tower, Series - MasterBox Series, Supported Mainboard Type - ATX, Micro ATX, Mini ITX, Front/Top USB port - 1 x USB3.2 Gen 1, 1 x USB2.0, Front/Top Audio Port - 1 x Audio, 1 x Microphone, 3.5 Inch Drive Bay - 2, 2.5 Inch Drive Bay - 2, Expansion Card Slots - 7, Cooling Fan (Built-In) - 2, Cooling Fan (Optional) - 4, Supported fan size - FRONT: 2x 140mm, 3x 120mm, TOP: 2x 120/140mm, REAR: 1x 120mm, FRONT INSTALLED: 1x 120mm (RGB), REAR INSTALLED: 1x 120mm (Black), Radiator Support Front/Top/Rear - FRONT: 120mm, 140mm, 240mm, 280mm, 360mm, TOP: 120mm, 240mm, REAR: 120mm, Power Supply Type - ATX PS2, Lighting Support - RGB, Graphics-card Length - 410mm (without radiator installed), 360mm (with radiator installed), CPU cooler height - 165mm, Transparent Side Window - Yes, Materials - Plastic, Tempered Glass, Body Color - Black, Body Dimensions (H x W x D) - 468.5 x 217 x 499.5mm, Others - PSU: 390mm (without radiator and HDD installed), 200mm (with radiator and HDD installed), DUST FILTERS: Top, Front, Bottom, Specialty - Full Tower Tempered Glass Side Window Gaming Desktop Case, ANGLE OF ATTACK, Angled Ventilation, Illuminated RGB Fan & Power Button, Tempered Glass Transparent Side Panel, Clean Routing Space, Versatile Component Support, Warranty - No Warranty, Part No - MCB-K501L-KGNN-SR1
