Physical Specification | ||

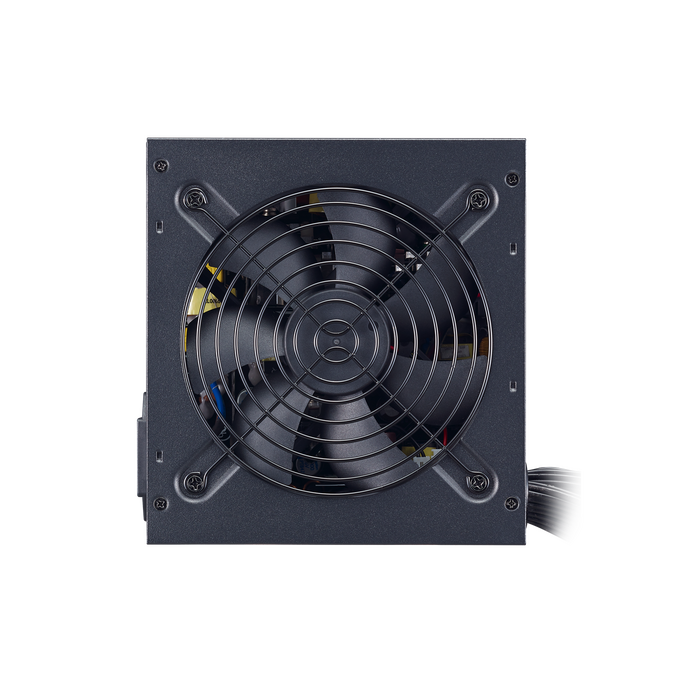

Fan Size | 120mm | |
Fan Bearing | HDB | |
Protections | OVP, OPP, SCP, UVP, OTP | |
Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB | |
ATX 24-Pin Connectors | 1 | |
EPS 4+4 Pin Connectors | 1 | |
SATA Connectors | 6 | |
Peripheral 4-Pin Connectors | 4 | |
PCI-e 6+2 Pin Connectors | 2 | |
Technical Specification | ||
Input Frequency | 50-60Hz | |
Fan Speed | 1500 RPM | |
Noise Level @ 20% | 10.1 dBA | |
Noise Level @ 50% | 15.8 dBA | |
Noise Level @ 100% | 28.2 dBA | |
Efficiency | 85% Typically | |
80 PLUS Rating | 80 PLUS Bronze | |
ErP 2014 Lot 3 | Yes | |
Operating Temperature | 40°C | |
Power Good Signal | 100 - 500 ms | |
Hold Up Time | >18ms at 100% Full Load@230Vac | |
MTBF | >100,000 Hours | |
General | ||
Model | MWE 450 Bronze V2 | |
Product Number | MPE-4501-ACAAB | |
ATX Version | ATX 12V V2.52 | |
PFC | Active PFC | |
80 Plus | Bronze | |
Modular | Non Modular | |
Wattage | Under 500W | |
Series | MWE Bronze Series | |
Power | ||
Input Voltage | 100-240V | |
Input Current | 8-4A | |
Physical Description | ||
Dimensions | 140 x 150 x 86 mm | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |
The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The MWE Bronze series has an 80 PLUS Bronze efficiency rating, meaning it has a guaranteed typical efficiency of 85%.
Cooler Master now reports Cybenetics noise and efficiency ratings for current power supply units where applicable. For more information about the Cybenetics rating system and their work with Cooler Master
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it’s important for a PSU to have the right protections and regulations to ensure this process runs correctly.
The MWE Bronze’s Active Power Factor Correction uses a specialized circuit to correct power factor, leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.
