Physical Specification | ||
Cooling Fan | Single | |
Technical Specification | ||
CUDA Core / Stream Processors | 384 (CUDA) | |
Engine Clock | Base-1278MHz / Boost-1531MHz (OC), Base-1252MHz / Boost-1506MHz (Gaming) | |
Memory Clock | 6008 MHz | |
Capacity (GB/TB) | 2GB | |
Memory Bus | 64-bit | |
Memory Type | GDDR5 | |
Interface Bus | PCI Express 3.0 | |
DirectX Support | 12 | |
OpenGL Support | 4.5 | |
HDCP Support | Yes | |
Supported Operating System | Windows 10 | |
General | ||
Model | Asus Phoenix GeForce GT 1030 OC | |
Chipset | NVIDIA GeForce | |
Power | ||
Power Consumption | 30W | |
Recommended PSU | 300W | |
Graphics Specifications | ||
Graphics Resolution Max. | 1920x1200 | |
Multi Display Capability | Triple Display | |
DVI Port | 1 | |
HDMI Port | 1 | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |

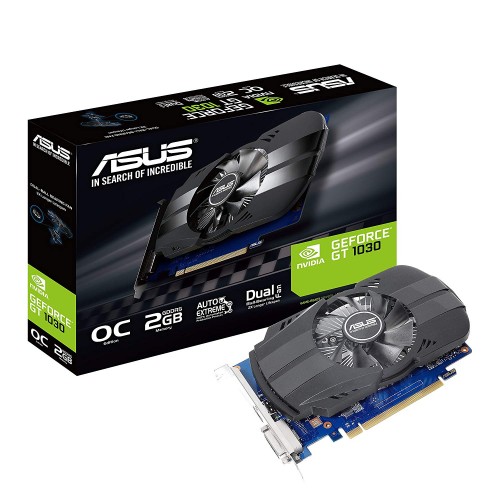

ASUS Phoenix GeForce® GT 1030 OC edition 2GB GDDR5 is the best for compact PC build and home entertainment
ASUS Phoenix GeForce® GT 1030 comes equipped with a dual ball-bearing fan for a 2X longer card lifespan and the fan is IP5X dust-resistant for improved reliability. Industry-exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. ASUS Phoenix GeForce® GT 1030 also has GPU Tweak II for intuitive performance tweaking.
1 X Native DVI-D
1 X Native DisplayPort
ASUS fan design is certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and optimal fan performance, even under severe conditions.

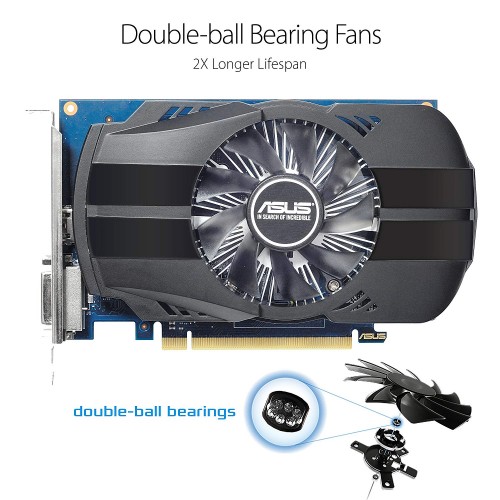

Without the problem of oil drying common in sleeve-bearing fans, the dual-ball bearing fan on ASUS Phoenix GeForce® GT 1030 lasts 2X longer. With reduced friction, it also runs smoother, further improving card lifespan and cooling efficiency.
ASUS graphics cards are produced using Auto-Extreme technology, an
industry-first 100% automated production process, and feature premium
Super Alloy Power II components that enhance efficiency, reduce power
loss, decrease component buzzing under load, and lower thermal
temperatures for unsurpassed quality and reliability.
*this pic is for demonstration only

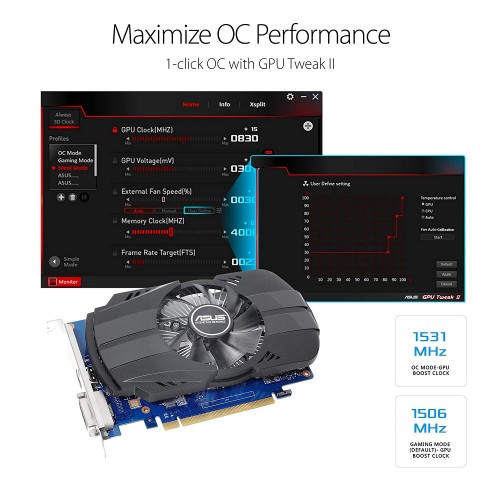

Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.
Brand - Asus, Chipset Vendor - NVIDIA GeForce, Chipset Model - GT 1030 OC, Model - Asus Phoenix GeForce GT 1030 OC, CUDA Core / Stream Processors - 384 (CUDA), Engine Clock - Base-1278MHz / Boost-1531MHz (OC), Base-1252MHz / Boost-1506MHz (Gaming), Memory Clock - 6008 MHz, Memory Size - 2GB, Memory Bus - 64-bit, Memory Type - GDDR5, Interface - PCI Express 3.0, Digital Max Resolution - 1920x1200, DirectX - 12, OpenGL - 4.5, DVI Port - 1, HDMI Port - 1, Power Consumption - 30W, Recommended PSU - 300W, Multi Display Capability - Triple Display, HDCP Support - Yes, Cooling Fan - Single, Supported OS - Windows 10, Part No - PH-GT1030-O2G, Warranty - 2 year
