Main Feature | ||
Type | Mid Tower | |
Front Panel | ARGB Control Button, Power, Reset, HD MIC/Audio, USB3.0, USB2.0 x 2 | |
Motherboard Support | ATX, M-ATX, ITX | |
Physical Specification | ||
Expansion Slots | 7 | |
Radiator Support | Front: ≤ 360 mm Rear: ≤ 120 mm | |
Fan Support | Front: 120mm x 3 / 140mm x 2 Top: 120mm x 2 Rear: 120mm x 1 PSU Shroud: 120mm x 2 | |
Pre- Installed Fans | Pre-Installed: 120mm x 1 in Rear | |
Drive Bays | 3.5" / 2.5": 2 / 1 2.5": 2 | |
I/O Port | ARGB Control Button, Power, Reset, HD MIC/Audio, USB3.0, USB2.0 x 2 | |
Basic Information | ||
Color(s) | Black | |
PSU | ≤ 160 mm | |
Side Panel | Transparent Side Panel | |
Physical Description | ||
Dimensions | 400 x 210 x 460mm | |
Weight | 3.36 Kgs | |
Maximum Processor Height | ≤ 160 mm | |
Maximum Graphics Card Length | ≤ 300 mm |

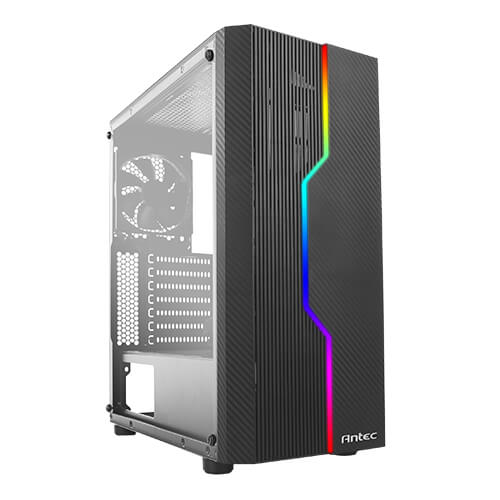

The NX230 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB3.0 connectivity, ample storage drive bays, room for expansion, and includes one 120mm fan in the rear. With support for up to a 360 mm liquid cooling radiator in front, NX230 is easy to build with and easy to cool. Just a single press to change the front panel’s ARGB lighting effect at will.
